ambient air heat pump

definitions and explanations

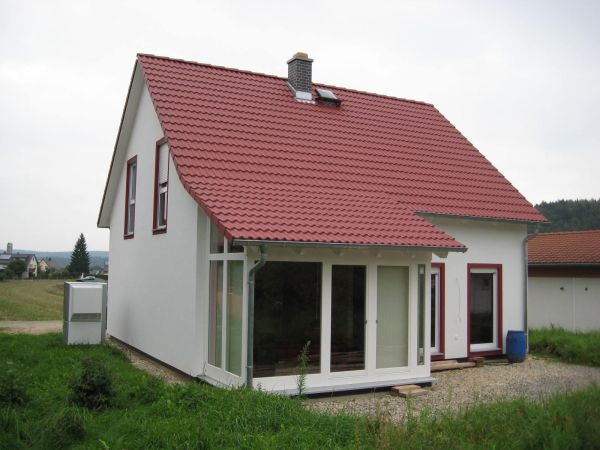

The Building

  heated area:                  125 m²

  space heating demand:  63.5 kWh/(m²*a)

  number of occupants:     3

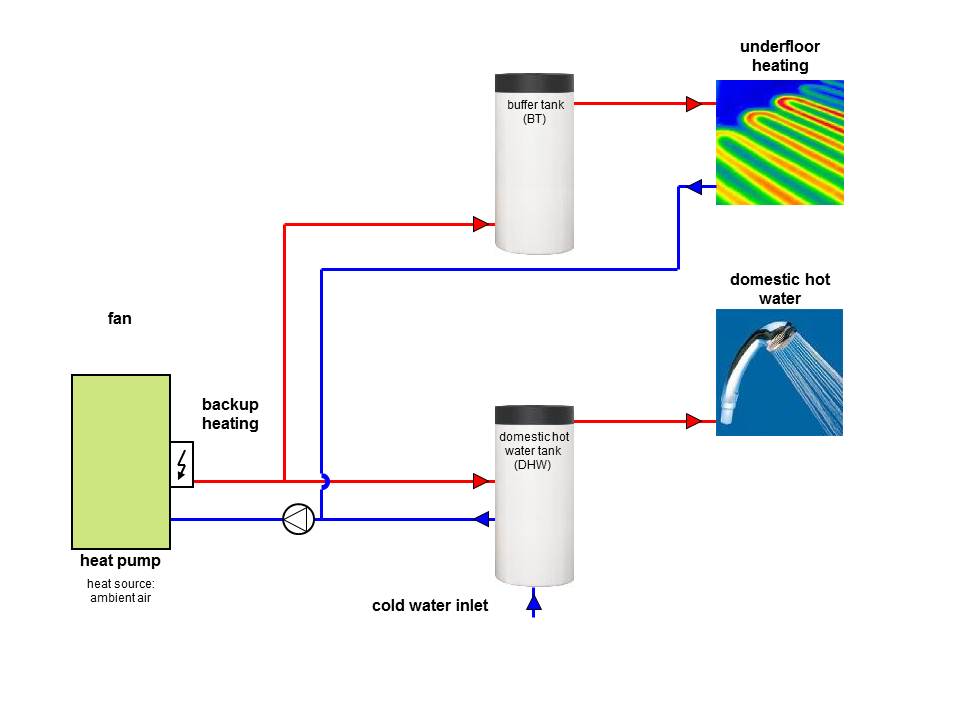

  Heating System

  thermal power (A2/W35):  8.4 kW*

  heat source:                    ambient air

  heat distribution:              underfloor heating

  * in accordance with EN 14511

to see current values please click on the picture

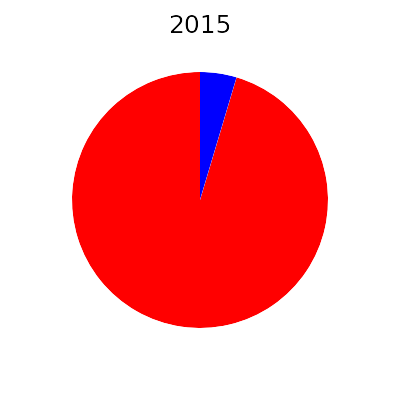

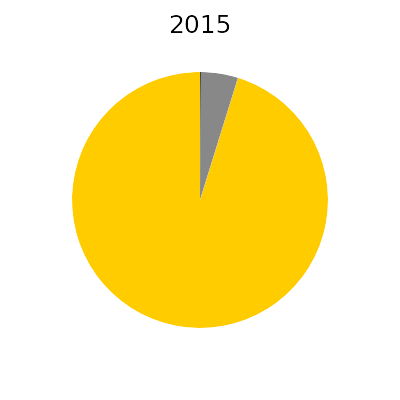

energy balances and seasonal performance factors SPF:

2010

2011

2012

2013

2014

2015

heat pump (compressor & controller)

fan

backup heating

space heating

DHW

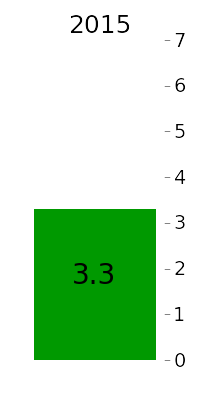

SPF

to see monthly average values please click on the diagrams

average daily temperatures:

ambient air heating circuit DHW loading circuit
