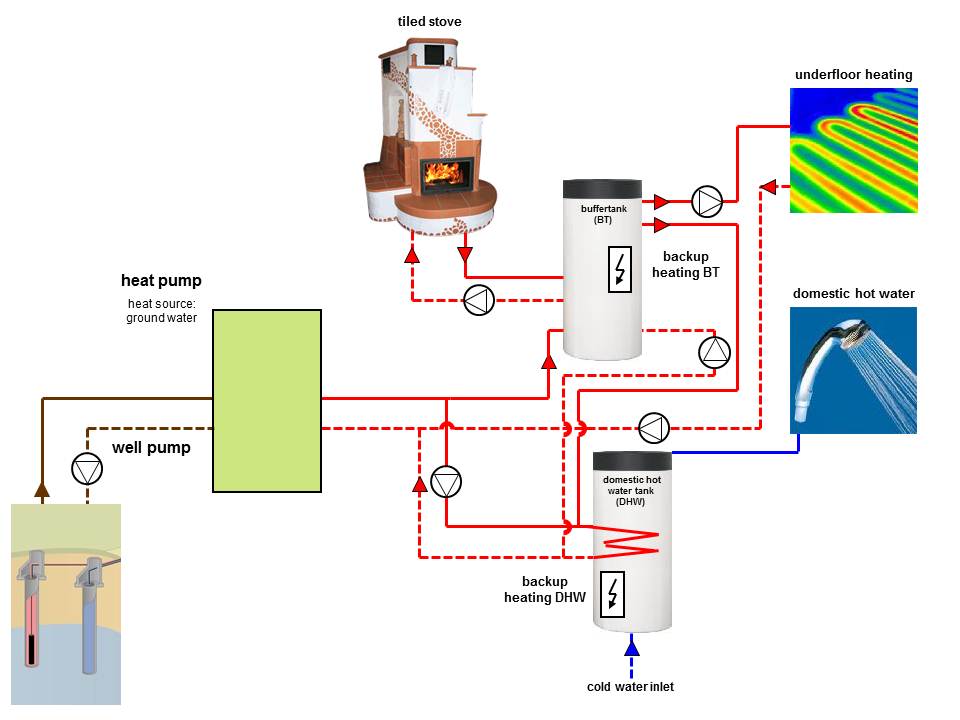

heated area: 310 m² space heating demand: no data number of occupants: 2 Heating System thermal power (A2/W35): 13.5 kW* heat source: ground water heat distribution: underfloor heating * in accordance with EN 14511 |
to see current values please click on the picture

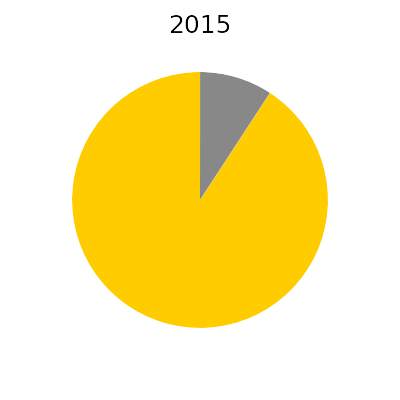

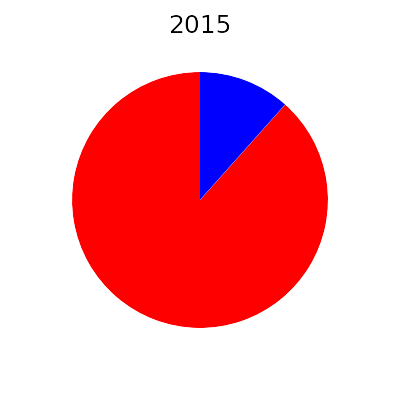

energy balances and seasonal performance factors SPF:
 heat pump (compressor & controller)
 well pump
 backup heating  space heating
 DHW

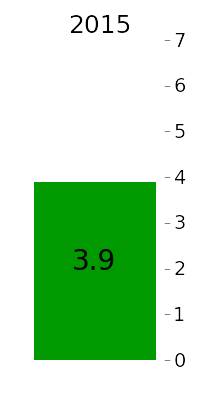

 SPF
to see monthly average values please click on the diagrams average daily temperatures:
primary circuit heating circuit DHW loading circuit
|
